PURE P57 Under-Canopy LED

The P57 is a 120 W under-canopy LED bar designed to add supplemental light below the primary crop canopy. Current variants include full-spectrum (white) and red.

Current published specifications

  • Input power: 120 W
  • PPF: 312 µmol/s
  • Beam angle: 134°
  • Input: 120–277 V operation is currently described
  • Dimming: 0–10 V with compatible control
  • IP rating: IP65
  • Dimensions: approximately 52 × 2.5 × 2.9 in

Trial before scale-up

Under-canopy performance depends on canopy architecture, fixture position, total photon distribution and crop strategy. Use a matched commercial trial and compare lower-canopy PPFD, accepted flower quality, power and labour.

Specification note: the current webpage lists 312 µmol/s PPF and 2.8 µmol/J while also describing 120 W input. Those figures should be confirmed against the latest manufacturer specification before project design.

Read How to Run an Under-Canopy Lighting Trial.

Available formats

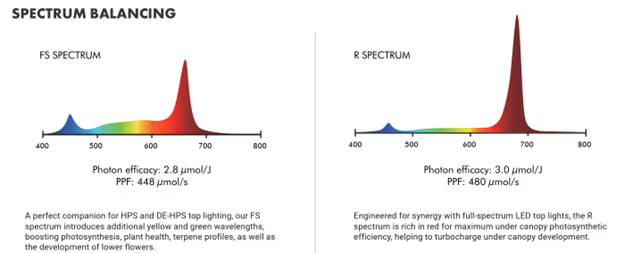

  • Full Spectrum (White)
  • Red

Commercial pricing and support are aligned to territory, facility scale, application and the outcome your team needs to repeat.

Discuss fit, pricing & availability
Review specifications, documents and COAs →

The Pure standard

A product earns its place by strengthening the operation.

01Consequence

Chosen to address a defined crop, labour or facility constraint—not to fill another shelf.

02Execution

Supported with practical guidance a commercial cultivation team can actually repeat.

03Confidence

Clear specifications and current technical documents help decision-makers defend the choice.

Why it belongs in the system

The purchase is only useful if the result becomes repeatable.

Discuss the application

Product guide

What you need to know before you choose.

A practical technical summary for commercial growers and facility teams.

What it is

A 120 W under-canopy LED bar offered in full-spectrum and red variants for supplemental lighting below the primary canopy.

Problem it solves

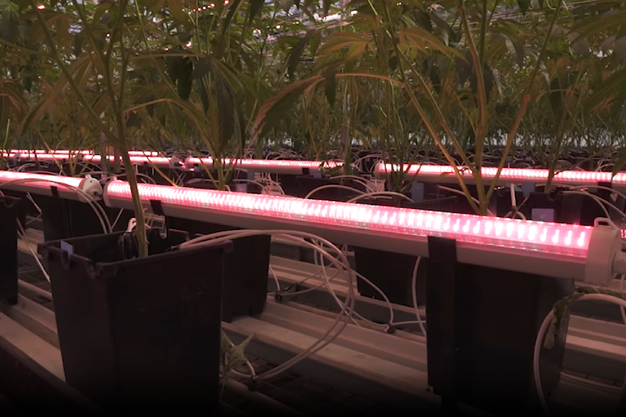

Adds light to lower productive sites that receive less top-light exposure in dense commercial canopies.

Who it is for

Commercial cannabis rooms running controlled under-canopy lighting trials where lower-canopy development is intentionally retained.

Materials & compatibility

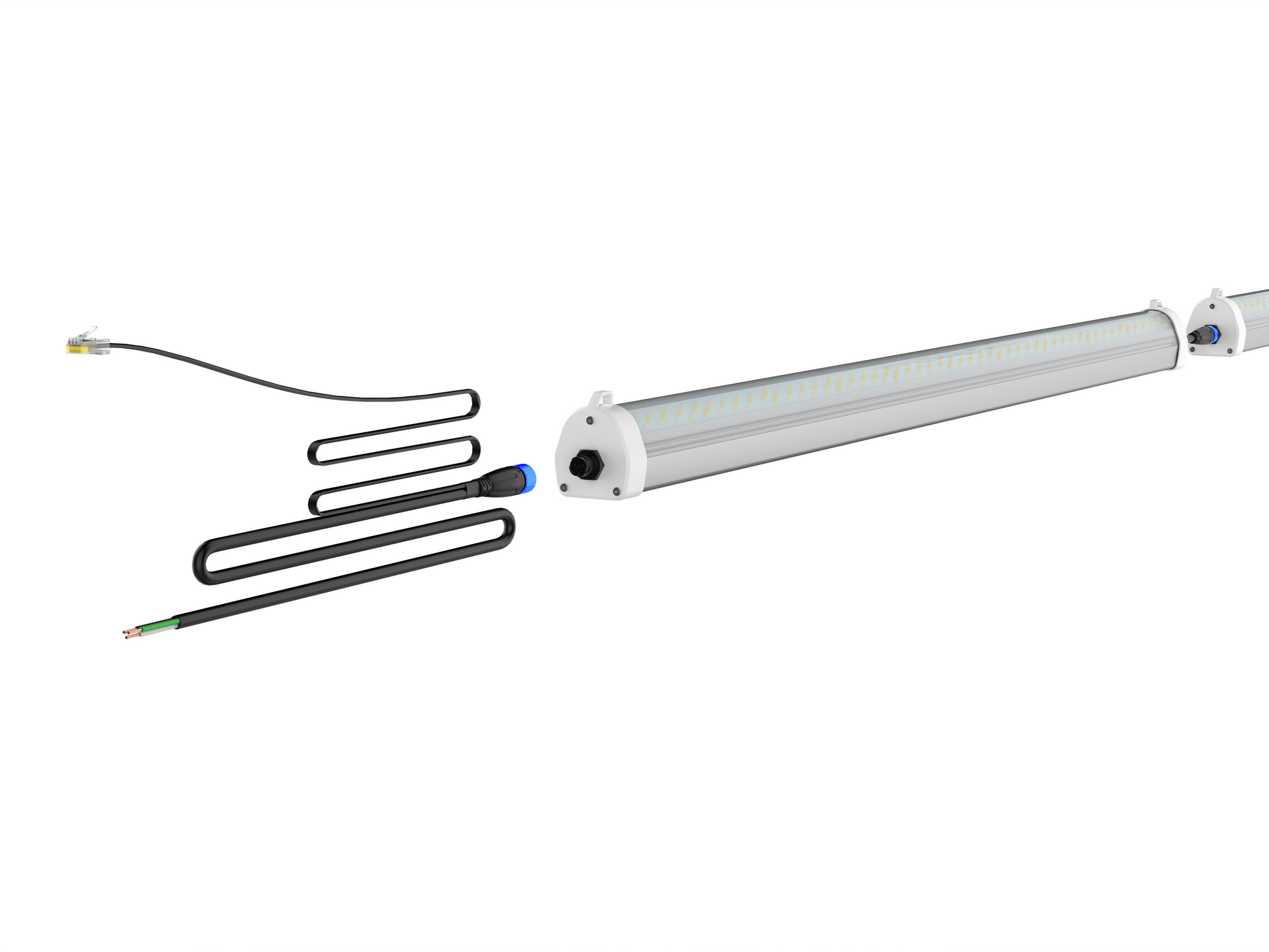

Current product information lists 312 µmol/s PPF, 134° beam angle, 0–10 V dimming, 120–277 V operation, IP65 and up to 16-unit daisy chaining depending on voltage.

How it is used

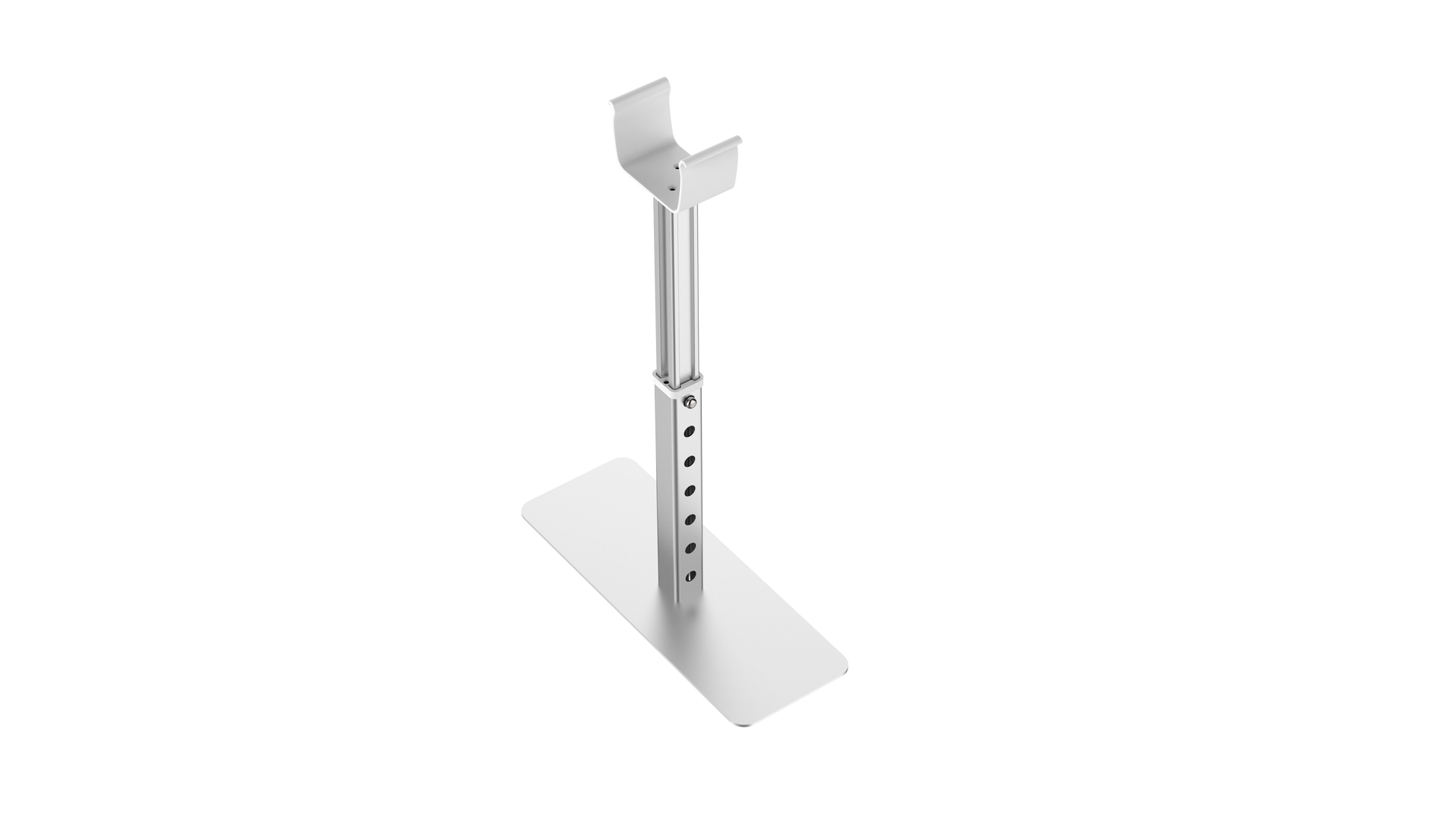

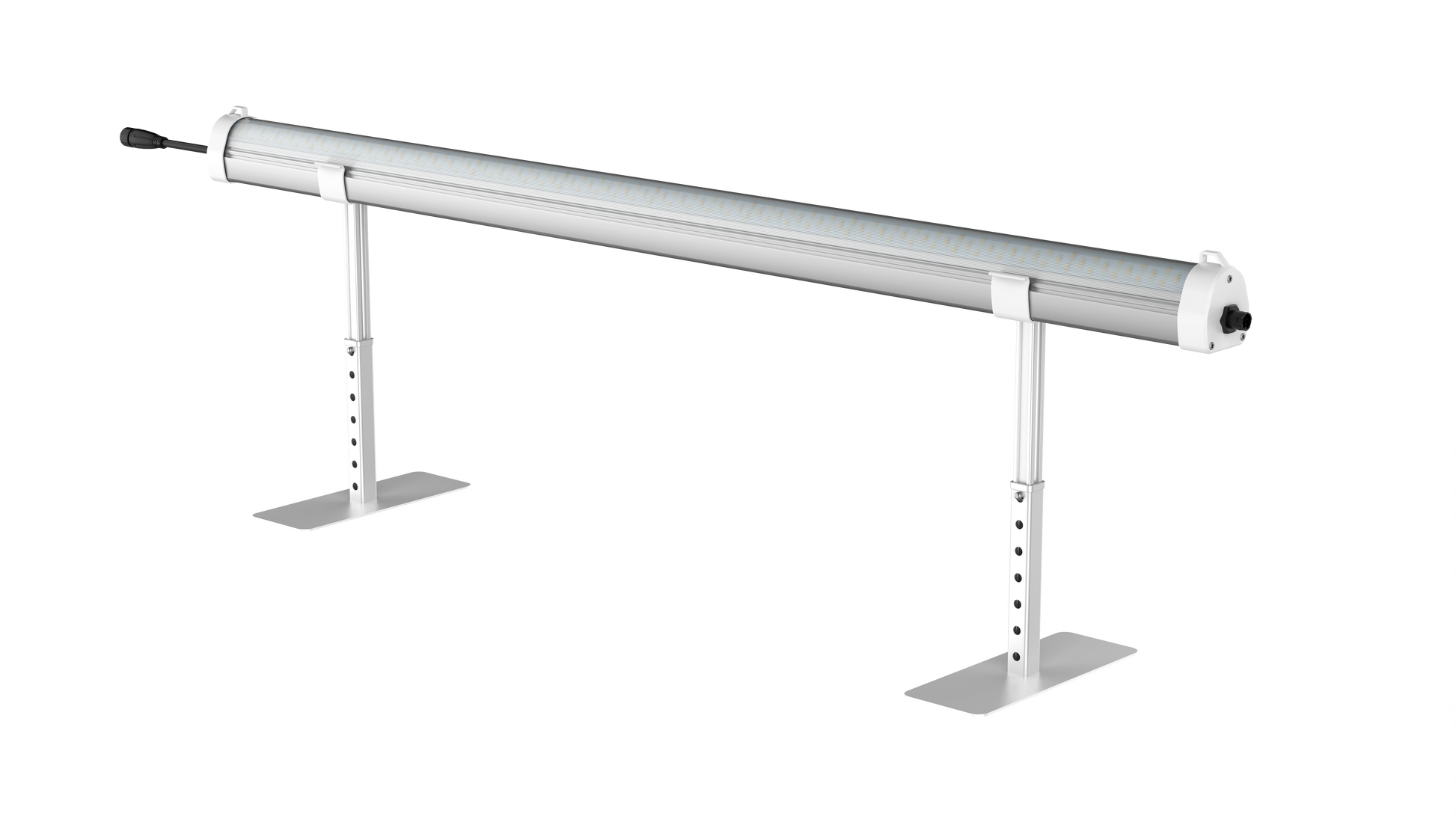

Install below the canopy using approved stands or suspension, map PPFD at plant level, start conservatively with dimming and compare treated/control zones using accepted flower quality, power and labour metrics.

Sizes & formats

120 W bar; full-spectrum (white) and red variants. Current dimensions approximately 52 × 2.5 × 2.9 inches.

Commercial applications

Under-canopy supplemental lighting in indoor flowering rooms, crop trials and facilities optimizing vertical photon distribution.

Limitations & cautions

The current listing states 312 µmol/s PPF and 2.8 µmol/J while also describing 120 W; those numbers are not arithmetically consistent, so verify the latest certified specification before design. Historical yield claims are not guarantees.

Supporting documentation

Current listing provides PPF, beam angle, voltage, dimming, IP rating, dimensions and certification claims. Request the latest photometric/electrical specification and rebate-eligibility documentation.

Frequently asked questions

Q: Which spectra are offered?
A: Full spectrum and red variants are currently listed.

Q: Is a specific yield gain guaranteed?
A: No. Run a matched trial and measure accepted output, power and quality.

Q: Is the current efficacy figure internally consistent with the listed wattage/PPF?
A: Not fully; verify the latest manufacturer spec sheet before specifying the fixture.
